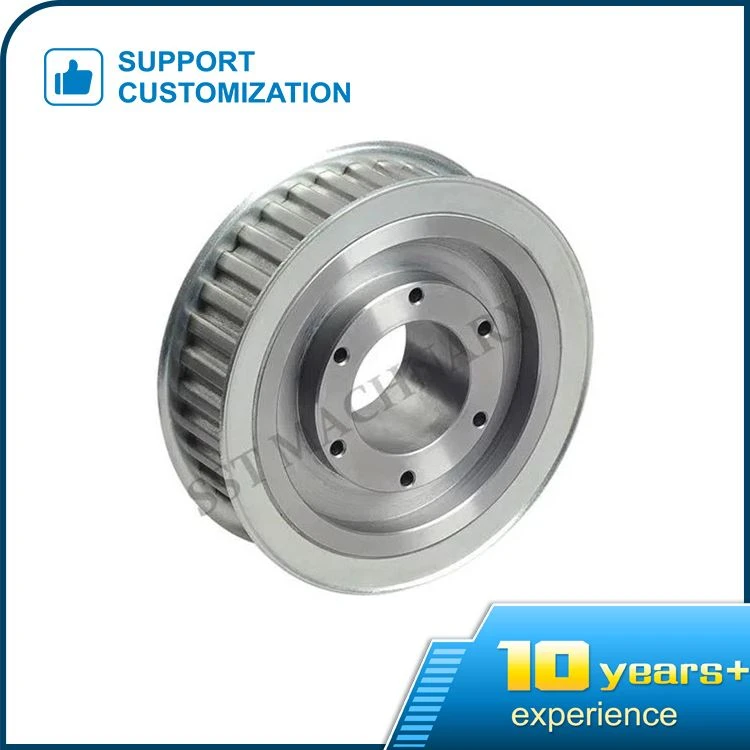

XXH Timing Pulley

XXH Timing Pulleys are available for a wide range of loads, speeds and applications. We offer five stock pitches as well as stock widths and diameters. Circular pitch (often simply referred to as pitch) is a factor to consider when selecting a timing pulley. Pitch is the distance between groove centers, measured on the pulley pitch circle on the belt, and pitch is the distance between tooth centers, measured on the pitch line of the belt. Please note that a belt of one pitch cannot be used with a pulley of a different pitch. The pulley (MPB) minimum glide hole needs to be machined to accommodate the preferred shaft size, set screw and keyway. QD - Quick Disconnect Pulleys use QD bushings, which allow the required bushing to be selected for the desired shaft. Flanged Pulleys Because of the inherent, mild side thrust of timing belts, it is necessary to use at least one flanged pulley to prevent the belt from slipping. Generally, the smaller pulley in each drive is flanged for economy.

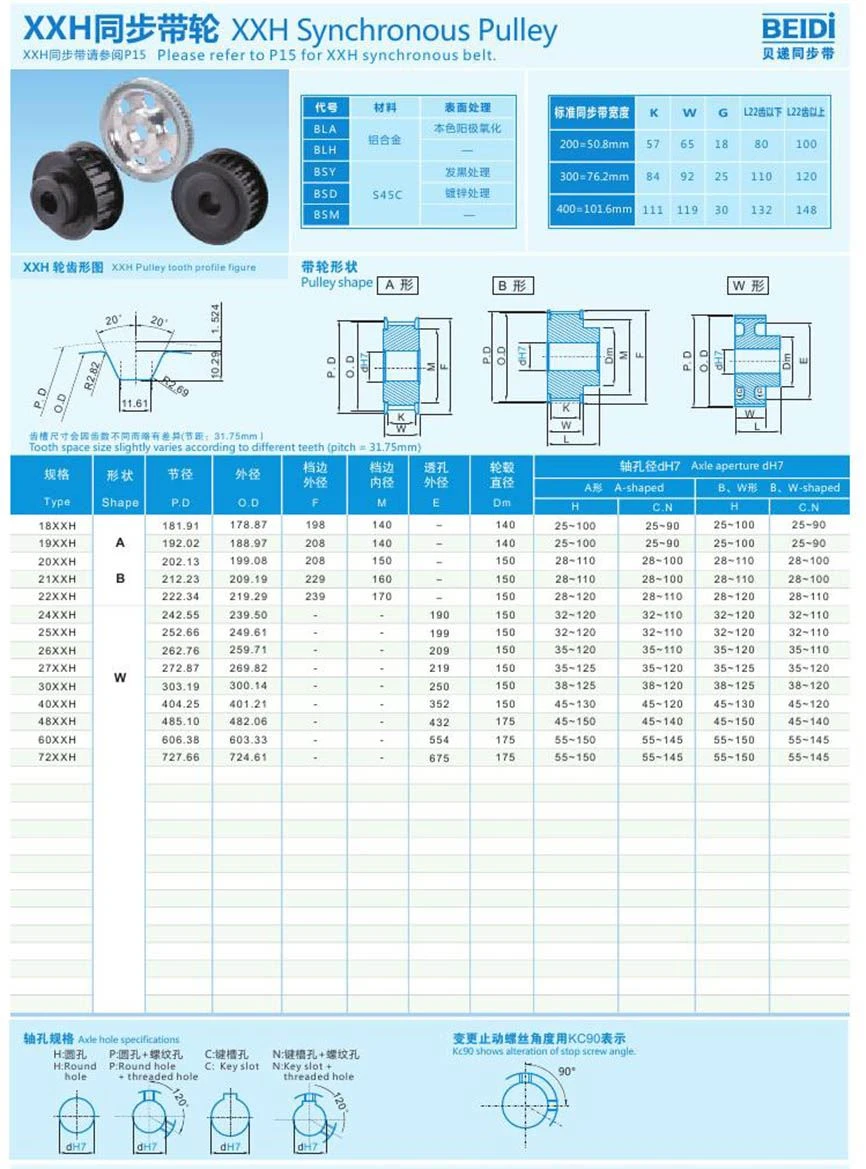

Parameter for XXH timing pulley:

XXH (pitch 31.750) - super heavy

Apply for Forced draft fan, high-pressure pump, variable speed machine, rod mill, compressor, NC lathe, vibrator, mixer, grinding drilling machine.

XXH timing pulley is generally made of 45# steel, aluminum alloy, cast iron, cast aluminum, brass and other materials. The inner holes are round, D-shaped.

Conical hole, etc. Surface treatment includes natural color oxidation, blackening, galvanizing, color zinc plating, high frequency quenching and other treatments.

Features for XXH timing pulley

1. Accurate transmission, no sliding during operation, with constant transmission ratio

2. Stable transmission, buffering and damping capacity, low noise

3. High transmission efficiency, up to 0.98, with obvious energy-saving effect

4. Convenient maintenance, no lubrication and low maintenance cost

5. The speed ratio range is large, generally up to 10, and the linear speed can reach 50M / s. It has a large power transmission range, up to several watts several hundred kilowatts

6. It can be used for long-distance transmission, and the center distance can reach more than 10m

7. No pollution, can work normally in places where pollution is not allowed and the working environment is relatively harsh

The XXH belt pulley is divided into standard synchronous belt pulley and non-standard synchronous belt pulley.

The standard synchronous pulley is in accordance with the international unified standard, and its tooth number, adaptive belt width, pulley shape, shaft hole specification, shaft hole diameter and other parameters are fixed values.



Non standard products are the engineers who change some values on the basis of standard products (standard product reform, also known as small non-standard); Or a new design made entirely according to the needs (non-standard customization, also known as big non-standard).

Square toothed synchronous belt pulley is the most widely used in the current market.

We give best service and professional technician support for our client.
