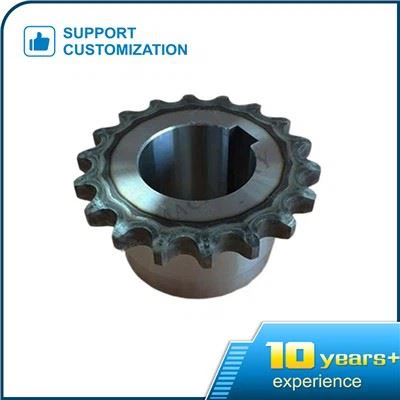

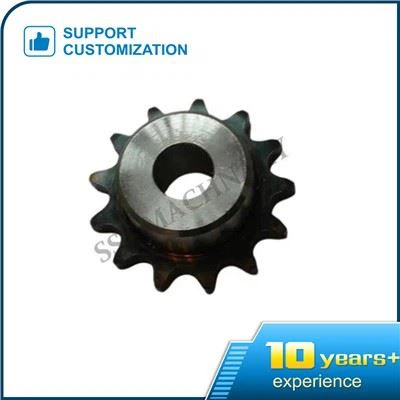

Chain Sprocket Set

Sprocket is a wheel part that can mesh with the chain. One of the main parameters of the sprocket is the chord pitch (pitch). The chord pitch of the sprocket is the distance between the intersection of the two cogging centerlines meshed with one link of the chain and the indexing circle, which is equal to the basic pitch (pitch) of the chain.

Because the chain type has self weight and swing range, such cooperation is unreasonable. Generally, it should be slightly larger than 0.10-0.30.

It is called sprocket, not gear. Sprocket is a wheel part that can mesh with chain. One of the main parameters of chain sprocket set is chord pitch (pitch).

The chord pitch of the chain sprocket set is the distance between the intersection of the center lines of the two cogs engaged with one link of the chain and the indexing circle, which is equal to the basic pitch (pitch) of the chain.

The advantage of chain sprocket set is that it can transmit motion and power when the center distance of two axles is far away. It can work under low speed, heavy load, high temperature and large dust. It can ensure accurate transmission ratio, large transmission power and small force acting on the shaft. High transmission efficiency.

The disadvantage is that after the hinge of the chain is worn, the pitch becomes larger, resulting in disconnection. High installation and maintenance requirements. The advantages of gear transmission are: constant instantaneous transmission ratio, high stability, accurate and reliable transmission of motion. The transmitted power and speed range is large. Compact structure, reliable operation and large transmission ratio. High transmission efficiency and long service life. Disadvantages: high manufacturing and installation requirements.

1. The sprocket shall be installed on the shaft without skew and swing. In the same transmission assembly, the end faces of two sprockets shall be located in the same plane. When the center distance of sprockets is less than 0 and 5 meters, the allowable deviation is 1 mm; When the center distance of sprocket is more than 0 and 5m, the allowable deviation is 2mm. However, it is not allowed to have friction on the side of sprocket teeth. If the deviation of two wheels is too large, it is easy to cause chain disengagement and accelerated wear. When replacing the sprocket, pay attention to check and adjust the offset.

2. The tightness of the chain shall be appropriate. If it is too tight, it will increase power consumption and the bearing is easy to wear; Too loose chain is easy to jump and fall off. The tightness of the chain: lift or press down from the middle of the chain, and the center distance of the two sprockets is about 2-3cm.

3. The new chain is too long or elongated after use, which is difficult to adjust. The chain links can be removed according to the situation, but they must be even. The chain link shall pass through the back of the chain, the locking plate shall be inserted outside, and the opening of the locking plate shall face the opposite direction of rotation.
