The installation of worm drive requires high precision. The middle plane of worm gear should pass through the axis of worm.

In order to ensure the correct engagement of the transmission, the middle plane of the worm gear is not allowed to move axially during operation, so the worm gear shaft support should be fixed at both ends.

The maintenance of worm drive is very important, and pay attention to the surrounding ventilation and heat dissipation.

Design criteria: design according to the contact fatigue strength of tooth surface, check the bending fatigue strength of tooth root, and calculate the heat balance and worm stiffness.

The worm gear assembly is as follows:

1. Fix the bearings at both ends of the turbine and install the oil seal.

2. Put the turbine into the lower housing.

3. Cover the upper box, apply sealant or add sealing gasket between the box interfaces, and fix the box nuts. When pressing the box, check whether the turbine is offset, and the offset must be adjusted.

4. Do not press the end cover of the turbine.

5. Pay attention to the strength when threading the worm into the worm hole, otherwise the worm will be scratched, and the bearing and oil seal of the worm will be installed.

6. The end cap of the end cap that holds the turbine shall also be sealed, and the end cap that holds the worm shall be sealed. Turn the worm by hand to see whether it can rotate and whether it is too tight. If it is too tight, adjust the tightness of the end cap until it is tightened.

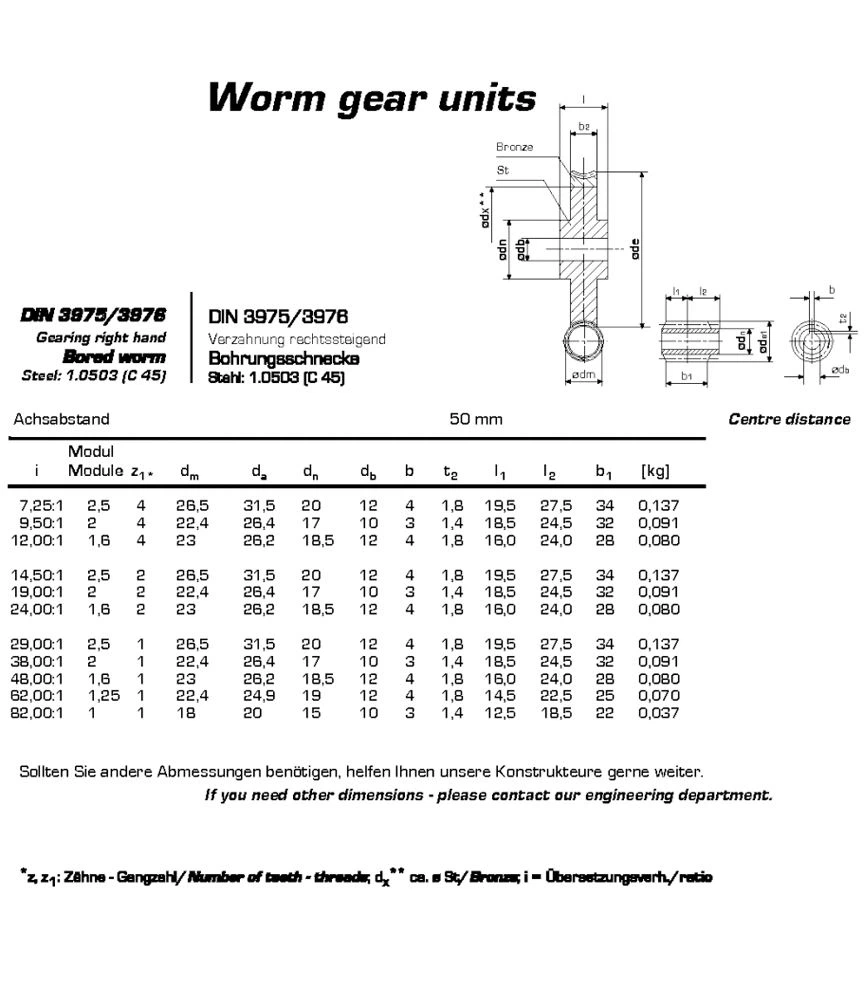

Worm gear assembly used in different machine and equipments.

Worm Gear Assemblies may be small, but they are rugged enough to handle demanding power transmission applications. They are constructed with a machined aluminum housing and hardened steel input and output gears to provide years of reliable performance.
Available in three standard output ratios and two output shaft diameter options, you can easily find an Ondrives.US miniature 90 degree gearbox to suit your needs. Each RW model worm gearbox assembly offers high torque values (1.4 NM at 3,000 RPM) and very low backlash (2° backlash maximum).

There are two options for the single thread worm assembly: bronze or cast iron. 932 bronze is used for the bronze gear. Without the sleeve installed, both gears have 2.875-inch bores. Their hub depths are 2 inches. 96 tooth gears are named after the number of teeth they have in the thread. The gear measures 12 3/4 inches wide by 12 3/4 inches high.
