AT10 Timing Belt





Introduction to AT10 timing belt:

AT10 pitch synchronous belts have a trapezoidal pitch of 10mm, which are used in medium-sized drives.

The design of at10 is 30% larger than the load capacity of T10.

The tooth profile of at is large, which minimizes the deformation of belt teeth and has a larger regional distribution of belt load.

Tough yarn is added into AT10 to further improve the load capacity of the belt.

Therefore, AT10 is a transmission synchronous belt with high load force.

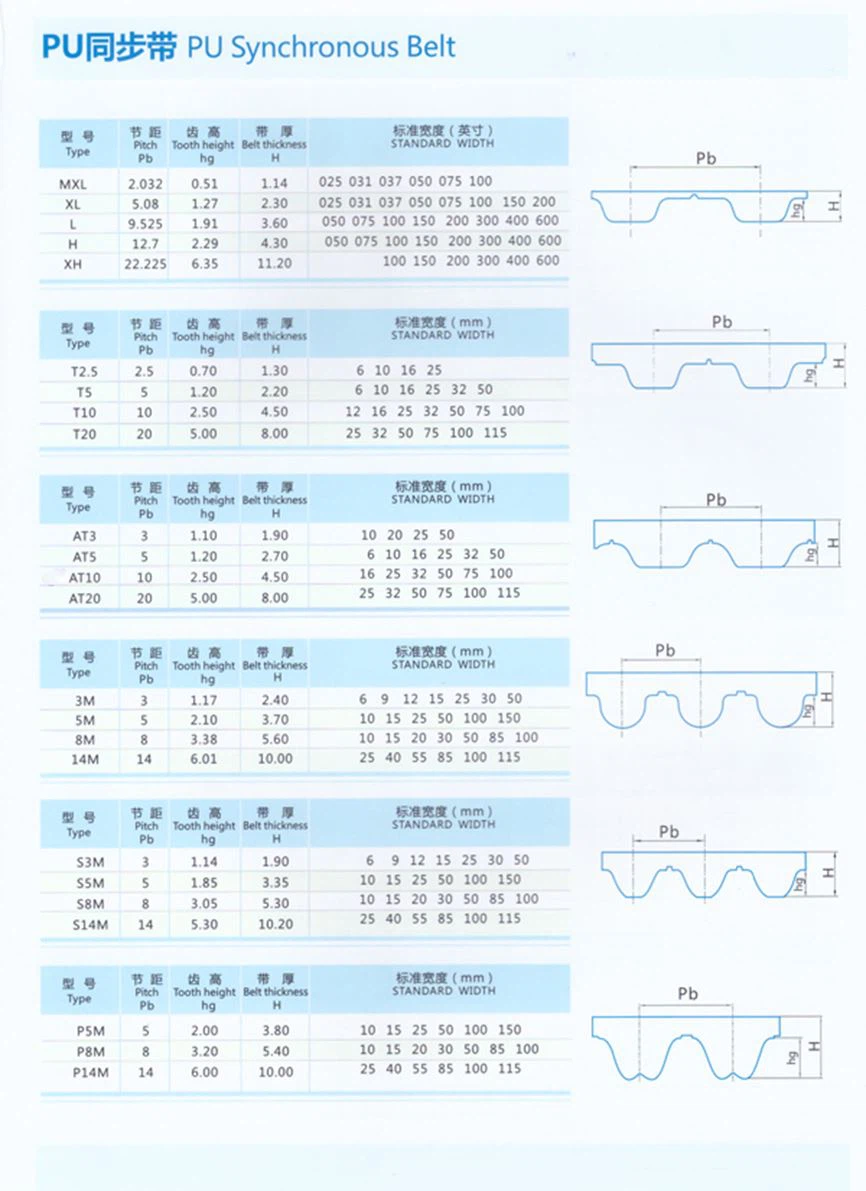

General specifications of at10 synchronous belt

(1) AT10 synchronous belt raw materials: glass fiber reinforced polyester, neoprene, nylon high elastic cloth

(2) AT10 synchronous belt load capacity: 60N / mm (343lbf / in)

(3) Breaking strength of at10 synchronous belt: > = 80N / mm (457lbf / in)

(4) AT10 synchronous belt operating temperature range: - 40 ° C - 120 ° C

AT10 timing belt width can be determined according to customer requirements

AT10 synchronous belt features:

AT10 synchronous belt is designed for long-lasting and energy-efficient power transmission and linear transmission operation.

They are mainly used for endless and open action, various sizes, structures and toothed designs to deal with a wide range of loads.

AT10 timing belt polyurethane is very wear-resistant, fatigue resistant, and very flexible at the same time.

Our product quality can be seen through many details, tight and accurate tolerance, and the realization of perfect tooth meshing.

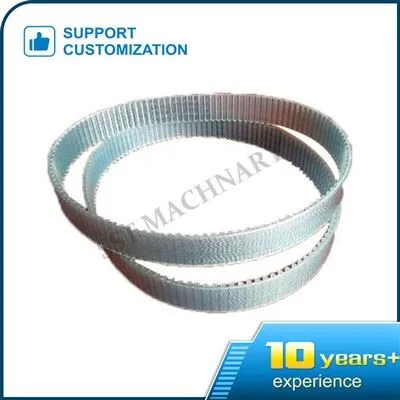

At10 open Pu synchronous belt has reliable transmission and dimensional stability. In the production process, a layer of nylon is added to the tooth surface and the back of the domain tooth to ensure the operation particularity in special applications. A layer of polyurethane can also be added to the back of the belt to prevent corrosion or high load.



The good bond between the wear-resistant polyurethane teeth and the fixed AT10 Timing Belt tension members is the basis for establishing a high power output potential. The range of available polyurethane compounds also allows low-temperature operation in clean rooms and the food industry.



The polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms, small hand machines to high-performance drives in construction and woodworking machinery.



High transmission power and long life

Temperature range from −30 °C do +80 °C

Resistant to oils, grease and fuel

Wear-resistant

Low-noise

High flexibility

Suitable for reverse flexing

Maintenance-free
