00621 Groove Fitting

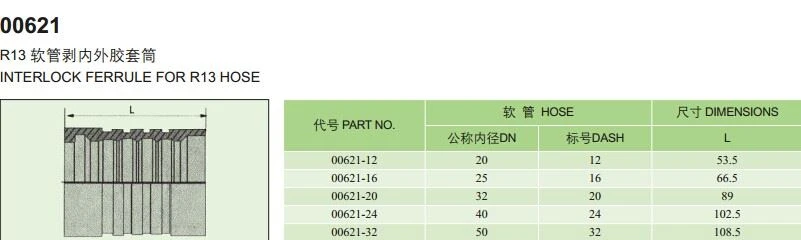

00621 groove ferrule is the ferrule suits for R13 hose, there are grooves outside the surface of the ferrule. Regular size is from 3/4” to 2”. The material of 00621 groove fitting is carbon steel Q235 or C45， the surface treatment is white zinc plating to stand at least 48 hours salt spray test.

R13 Hose is a kind of four layer wire Braided hose,  the working pressure of R13 hose is very high, it is around 5000psi, which is widely used in transferring of high pressure and temprature oil and other liquid in heavy industry, engineering constructure, vessels and agricultral machines, and other automatic hydraulic system.

The regular packaging of 00621 Groove Fitting is export mass packaging, first we will assemle the O-ring and washer to our fitting, and then put the fitting into a very big plastic bag to protect our fitting from moisture and anti-oxidant to suit sea delivery, after that we will put them into the box, the last we will pile the box into pallet, we have two pallets, one is 6 side plywood pallet, the other is just one side pallet, please find our sales team for detailed pictures.

In hydraulic pipeline system, ferrule fitting is a connection part, which connects different hydraulic components to form a closed circuit. Ferrule fitting is a connecting accessory that can withstand high pressure and is widely used in military industry, energy, petrochemical, electric power, automobiles, construction machinery, mining, metallurgy, steel mills, marine engineering and other industries.

We have different clients all over the world, some is End-equipment makers , some is importer for standard or non standard machine parts.  We have different CNC machine for production, and professional technician to control good quality.
